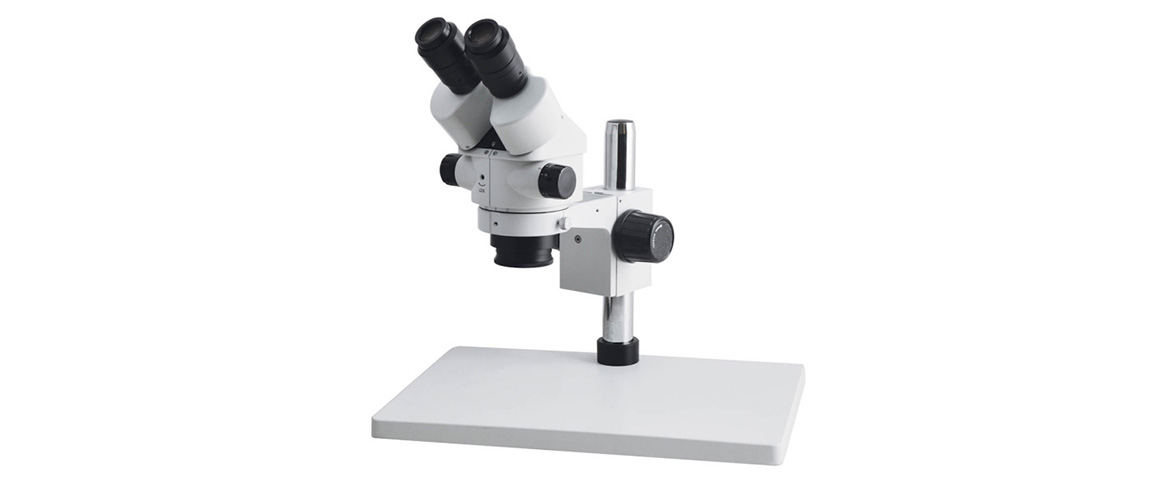

ZS7045N

标配（无辅助物镜）
Standard
(No auxiliary Lens)

带有辅助物镜  Auxiliary Lens

0.3X

0.5X

0.75X

1.5X

2X

目镜
Eyepiece

工作距离100mm
Working Distance100mm

工作距离287mm
Working Distance287mm

工作距离165mm
Working Distance165mm

工作距离117mm
Working Distance117mm

工作距离45mm
Working Distance45mm

工作距离30mm
Working Distance30mm

放大倍率
Magnification

视场
view

放大倍率
Magnification

视场
view

放大倍率
Magnification

视场
view

放大倍率
Magnification

视场
view

放大倍率
Magnification

视场
view

放大倍率
Magnification

视场
view

WF10X20mm

7X

28mm

2.1X

70.8mm

3.5X

52.1mm

5.3X

35.1mm

10.5X

19mm

14X

13.5mm

45X

4.3mm

13.5X

12.1mm

22.5X

8.4mm

33.8X

5.6mm

67.5X

3mm

90X

2.2mm

WF20X10mm

14X

13.1mm

4.2X

38.4mm

7X

26.9mm

10.5X

17.8mm

21X

9.5mm

28X

6.5mm

90X

2.1mm

27X

6.3mm

45X

4.3mm

67.5X

2.9mm

135X

1.5mm

180X

0.8mm

观察头
Observation head

45°倾斜，360°旋转，瞳距54---76mm；双边视度调节±5屈光度
45°decline,360°rotate,Pupil distance 54---76mm;Bilateral visual adjustment±5

铰链式双目  Hinged binocular

可调目镜
Adjustable eyepiece

标准配置：WF10X20，高眼点广角型目镜，为佩戴眼镜的观察者提供方便
Standard WF10X20,High angle wide angle eyepiece,provide convenience for observers wearing glasses

可选目镜
Optional eyepiece

WF10X20mm，WF20X10mm

放大倍数
Magnification

标准配置：7X---45X，选配目镜和辅助物镜可扩展至2.1X---180X，连续变倍
Standard 7X---45X,Optional and auxiliary lenses can be extended to 2.1X---180X,Continuous doubling

物镜
Objective

0.7X---4.5X连续变倍，物镜变倍比1：6.4，确保像面齐焦性
0.7X---4.5X Zoom Range,objective magnification ratio 1：6.4,Ensure image alignment

辅助物镜
Auxiliary Lens

0.3X，0.5X，0.7X，1X，1.5X，2X可选配  For option

工作距离
Working Distance

100mm

调焦托架
Focus arm

内径76mm，立柱孔径32mm
76mm Diameter,32mm pole size

底座
Base

B10立柱式大平板底座，可配选其他底座，详见底座系列图

B10 column type large plate base,Other base can be selected,See the base series for details

工作平台
Plate

黑白工作板
Black/White plate

外型尺寸
Outward Size

200mm(W)X273mm(D)X280mm(H)

照明
Illumination

可选配各种LED环形灯，详见LED光源系列图
Optional LED Illumination,See LED light source series diagram for details
