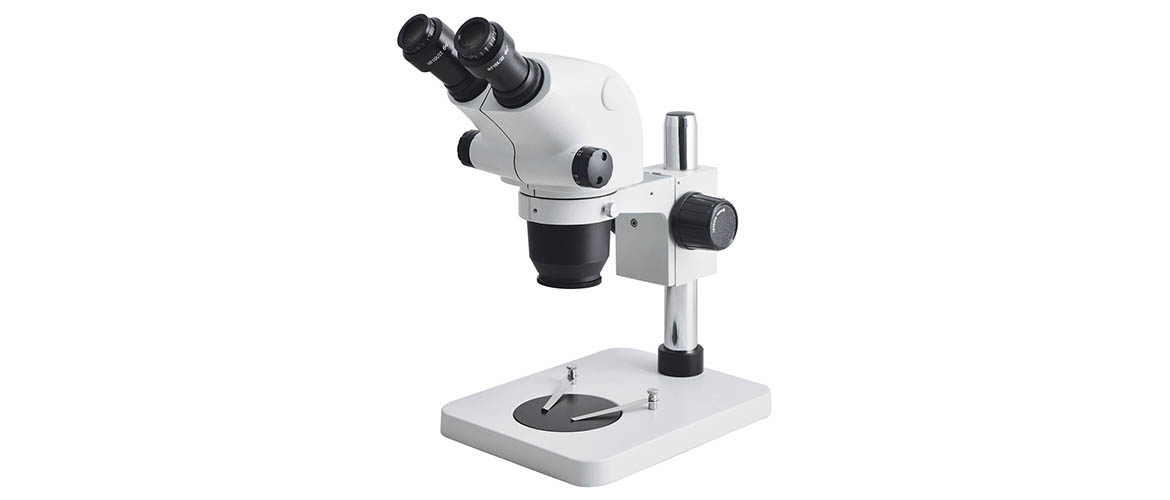

ZS6565

标配（无辅助物镜）
Standard (No auxiliary objective)

带有辅助物镜 Auxiliary Lens

0.3X

0.5X

0.7X

1.5X

2X

工作距离 Working Distance

100mm

287mm

165mm

120mm

45mm

30mm

目镜
Eyepiece

变倍比位置
Zoom Rate position

放大倍率
Magnification

视野
view

放大倍率
Magnification

视野
view

放大倍率
Magnification

视野
view

放大倍率
Magnification

视野
view

放大倍率
Magnification

视野
view

放大倍率
Magnification

视野
view

WF10X22

0.65

6.5X

32.2mm

1.95X

107.3mm

3.25X

64.4mm

4.88X

46mm

9.75X

21.5mm

13X

16.1mm

6.5

65X

3.4mm

19.5X

11.3mm

32.5X

6.8mm

48.8X

11.2mm

97.5X

2.3mm

130X

1.7mm

观察头
Observation head

45°倾斜，360°旋转，瞳距54---76mm；双边视度调节±5屈光度
45°decline,360°rotate,Pupil distance 54---76mm;Bilateral visual adjustment±5

可调目镜
Adjustable eyepiece

标准配置：WF10X22，高眼点广角型目镜，为佩戴眼镜的观察者提供方便
Standard WF10X22,High angle wide angle eyepiece,provide convenience for observers wearing glasses

可选目镜
Optional eyepiece

WF10X22，WF20X12mm

物镜
Objective

0.65X---6.5X连续变倍，物镜变倍比1：10，确保像面齐焦性
0.65X---6.5X Zoom Range,objective magnification ratio 1：10,Ensure image alignment

辅助物镜
Auxiliary Lens

0.3X，0.5X，0.75X，1X，1.5X，2X可选配  For option

放大倍数
Magnification

标准配置 6.5X---65X，选配目镜和辅助物镜可扩展至2X---260X，连续变倍
Standard 6.5X---65X,Optional and auxiliary lenses can be extended to 2X---260X,Continuous doubling

工作距离
Working Distance

110mm

调焦托架
Focus arm

内径76mm，立柱孔径32mm
76mm Diameter,32mm pole size

工作平台
Plate

黑白工作板
Black/White plate

底座
Base

B1立柱式小平板底座，可配选其他底座，详见底座系列图
B1 column type small flat base,Other base can be selected,See the base series for details

外型尺寸
Outward Size

320mm(W)X260mm(D)X274mm(H)

照明
Illumination

可选配各种LED环形灯，详见LED光源系列图
Optional LED Illumination,See LED light source series diagram for details
